Frame
Alpha Silver Aluminum, 24"
-

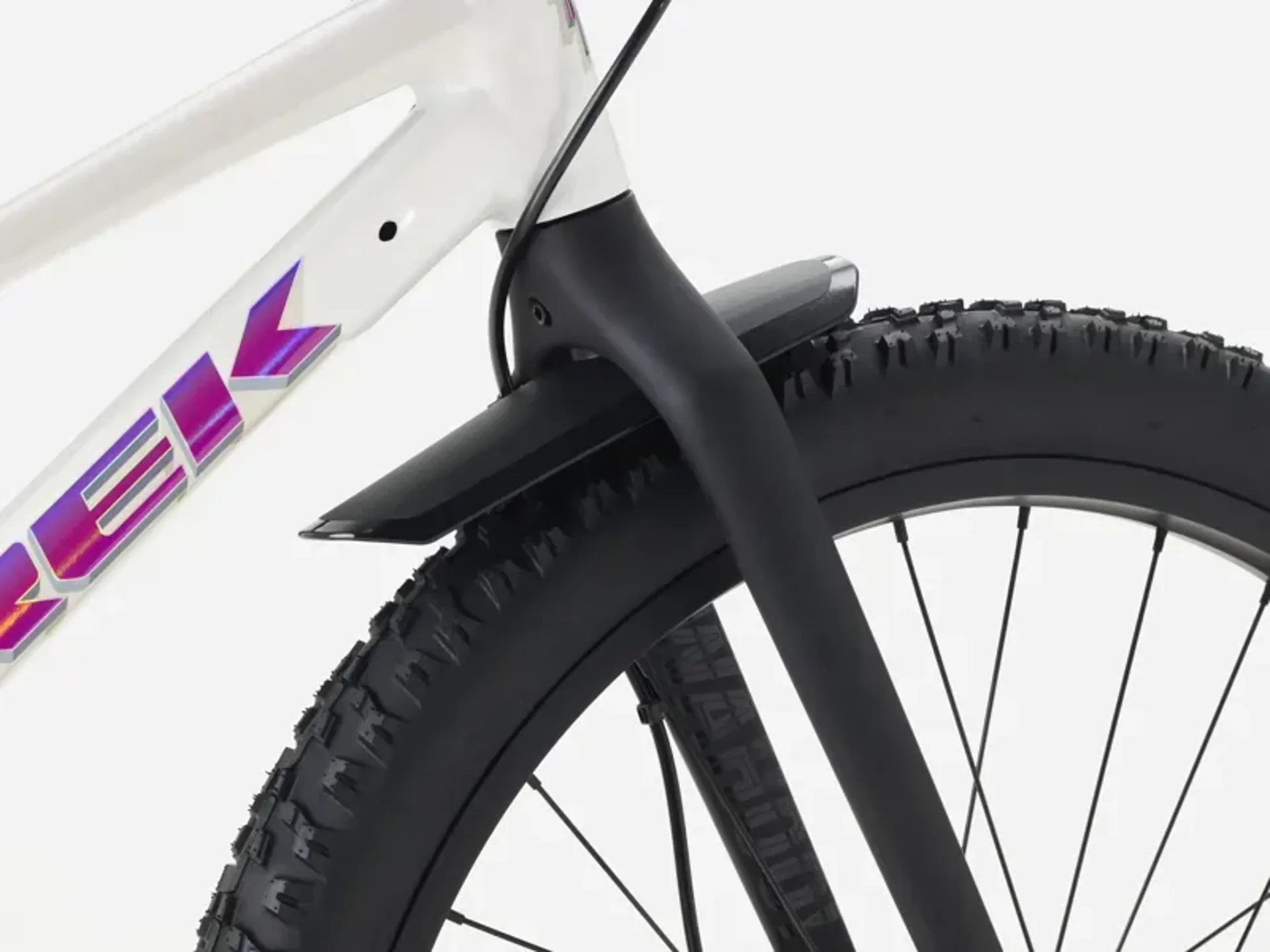

Fork
Wahoo 24" carbon, post-mount disk brake, ThruSkew 5 mm QR
-
Hub front
Formula DC-20, alloy, 6-bolt, 100 mm
-
Skewer front
135x5 mm bolt-on
-
Hub rear
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm
-
Skewer rear
169x5 mm bolt-on
-
Rim
Alloy 24'', 28H
-
Tire
Kenda Amrak, 30 tpi, 24x2.20"
-
Max tire size
24x2.40" with or without mudguards
-
Shifter
microSHIFT Advent Quick Trigger Pro SL-M6295, 9-speed
-

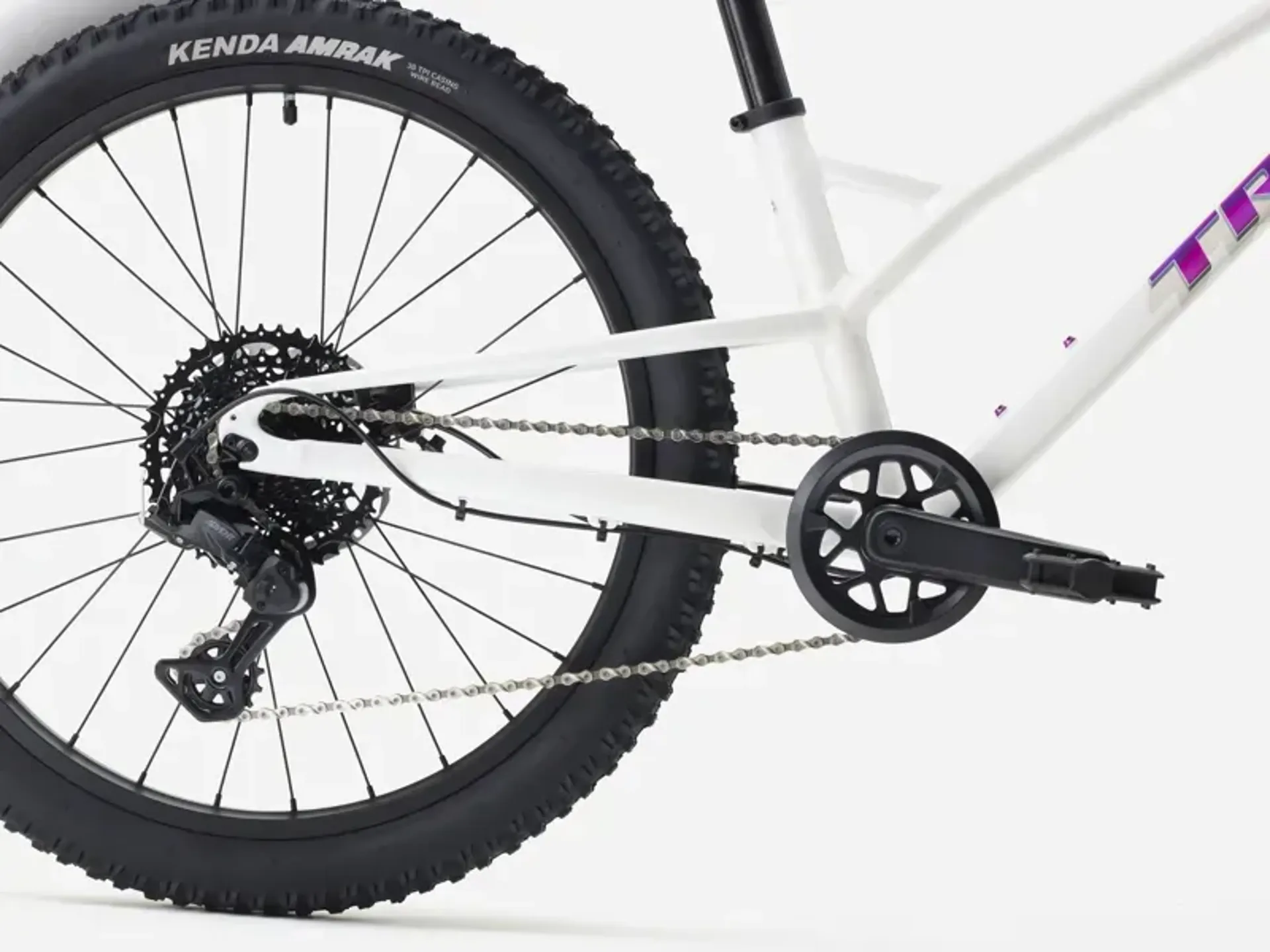

Rear derailleur
microSHIFT Advent RD-M6195M, 40-46T max cog
-
Crank
Alloy, 30T steel chain ring w/ guard. 127 mm length
-
Bottom bracket
Sealed cartridge, 68 mm
-
Cassette
microSHIFT Advent H093, 11-42, 9-speed
-
Chain
KMC X9
-
Pedal
VP-225 nylon platform
-
Max. chainring size
1x: 30T
-
Saddle
Kids' padded, integrated seat post, Blendr light mount, 31.6x270 mm
-
Handlebar
Bontrager alloy, 31.8 mm, 20 mm rise, 600 mm width
-
Grips
Size: 24" wheel Kids' grip, 110 mm width; Size: 24" wheel Kids' grip, 108 mm length
-
Stem
Bontrager alloy, 31.8 mm clamp, 6-degree, 45 mm length
-
Head set
Integrated, sealed cartridge bearings
-
Brake
Tektro HD-J285 hydraulic disk
-

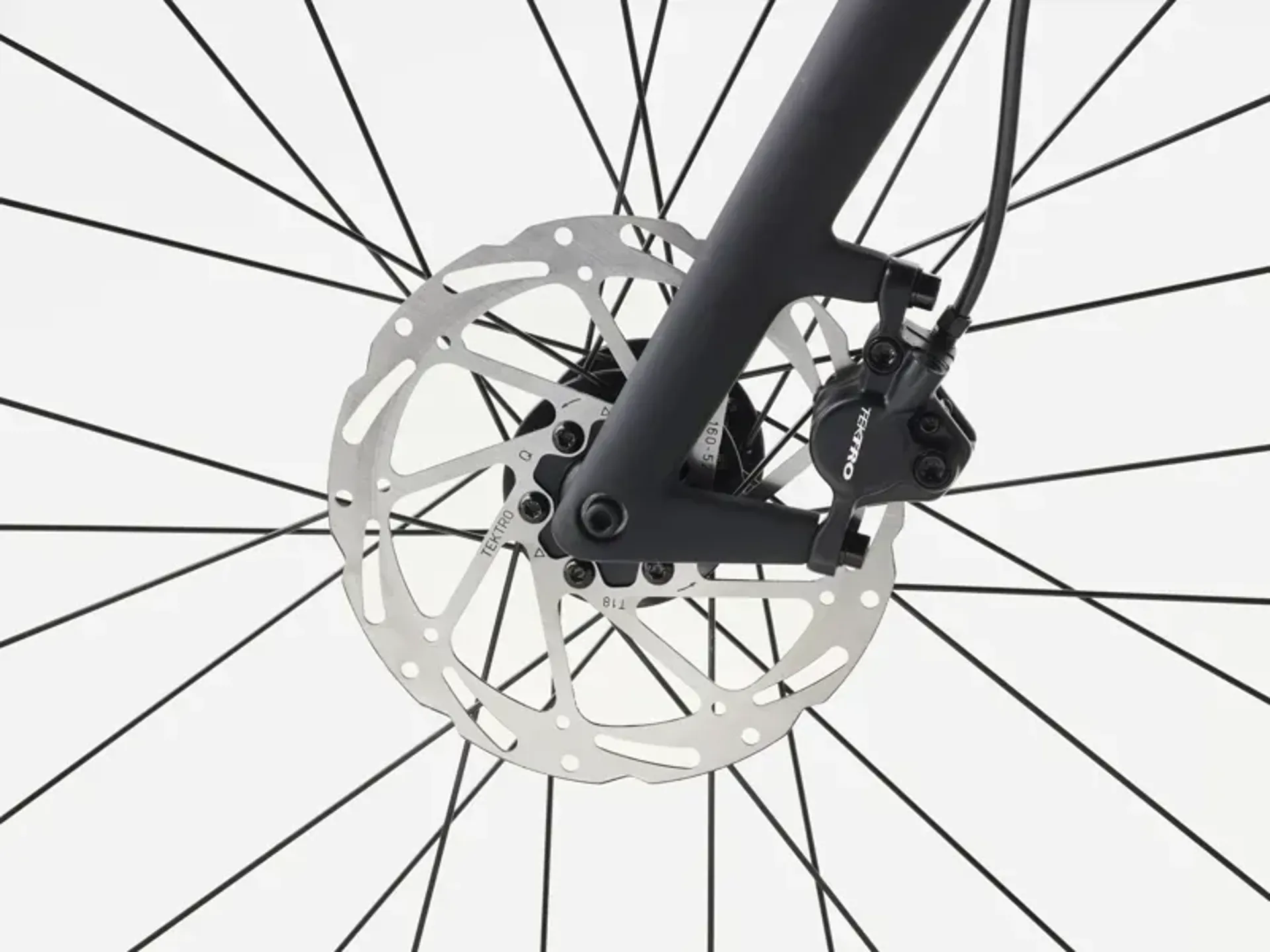

Brake rotor
Tektro, 6-bolt, 160mm
-
Rotor size
Max brake rotor sizes: 160 mm front and rear
-
Mudguard
Trek custom
-
Weight
10.50 kg / 23.15 lbs
-
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 175 lb (80 kg).
